• Wheels, 17" (43.2 cm) steel includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered
• Tires, LT245/75R17E all-season, blackwall
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered.)
• Spare tire lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (VF7) rear bumper delete is ordered.)
• Bumper, front chrome includes body-color bumper top caps
• Bumper, rear chrome, step-style with pad (Requires RPO (E63) wideside pickup box)
• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Mirrors, outside manual, Black, manual-folding
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• Tailgate protection top of tailgate protection cap

• Audio system, AM/FM stereo with seek-and-scan and digital clock (Not available with (U2K) SiriusXM Satellite Radio)
• SiriusXM Satellite Radio, delete
• Audio system feature, speaker system (Included with (5B5) power windows, doors and locks, SEO. Includes 4 speakers on Regular Cab models and 6 speakers on Extended and Crew Cab models.)

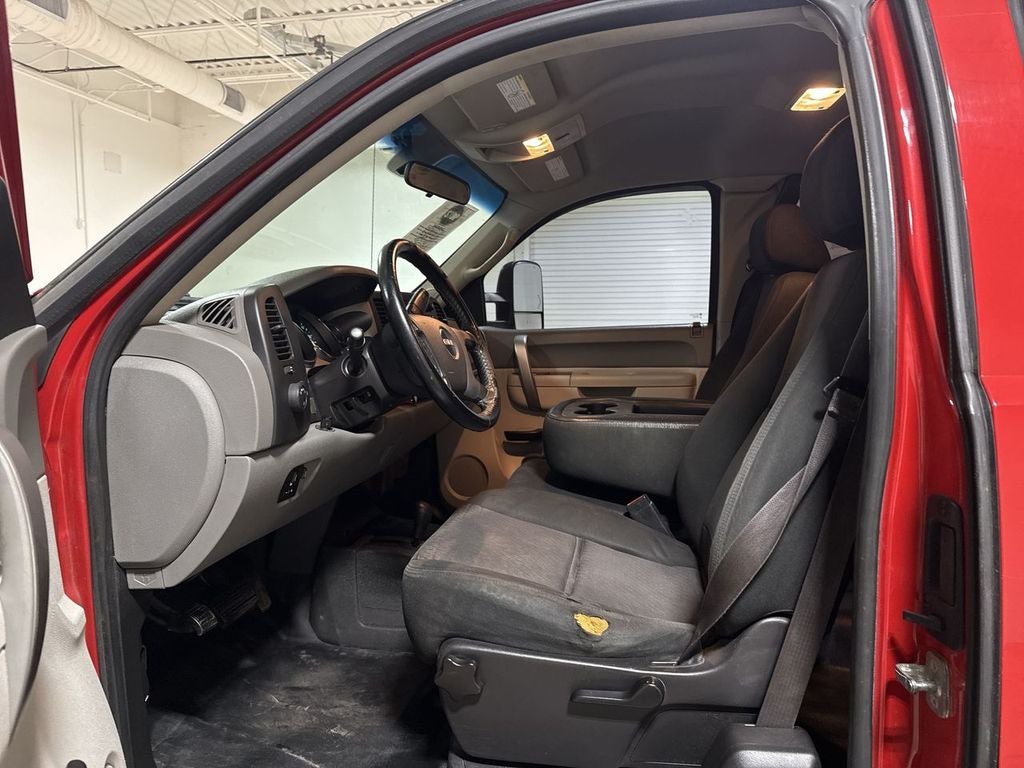

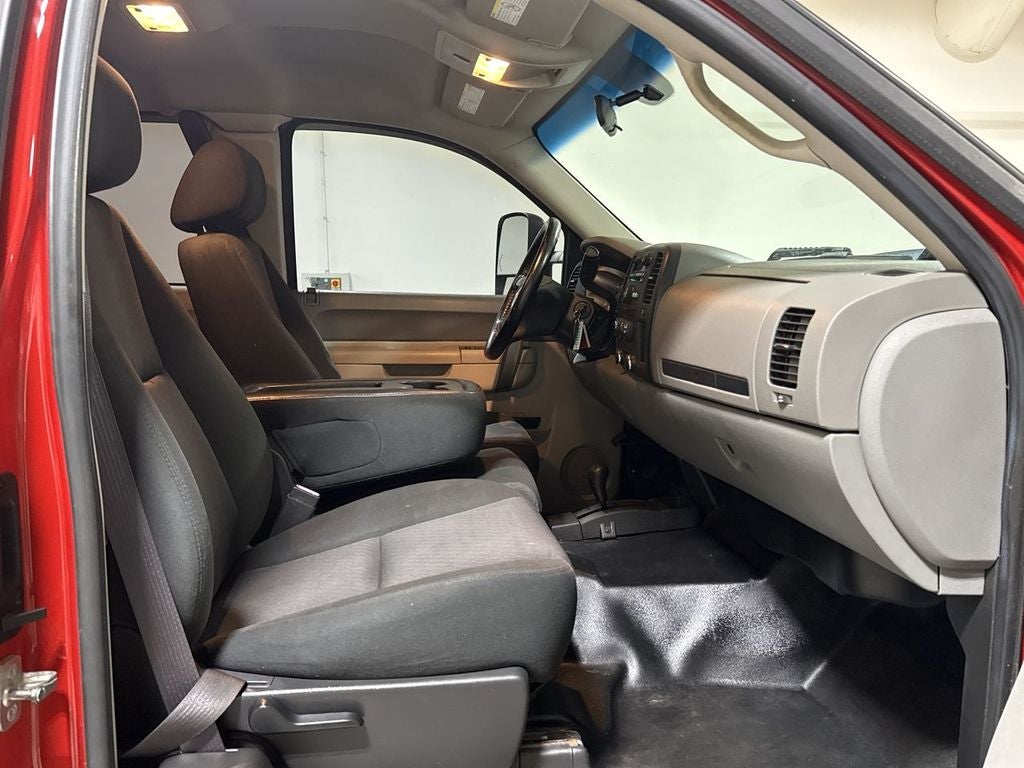

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• Seat trim, Vinyl
• Seat, rear bench (folds up), full width, folding, 3-passenger (includes child seat top tether anchor) (Standard with Extended Cab models only)
• Steering wheel includes theft-deterrent locking feature
• Floor covering, Black rubberized vinyl
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, fixed, rear access door (Standard with Extended Cab models only)
• Cruise control, electronic with set and resume speed, located on steering wheel

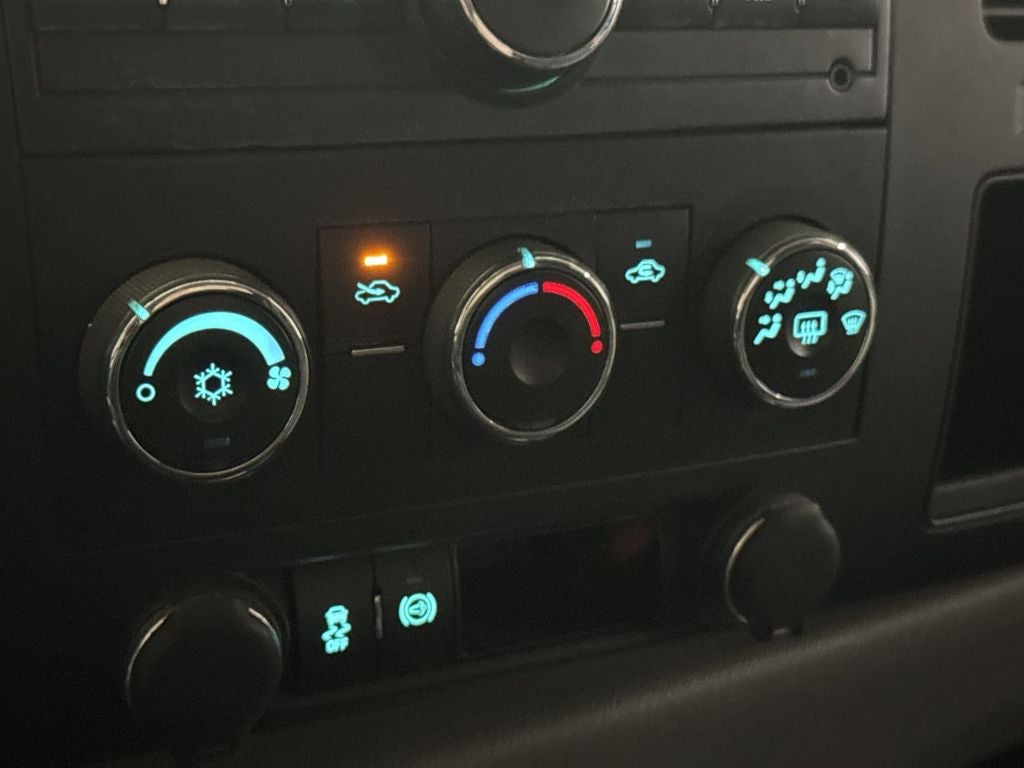

• Air conditioning, single-zone manual front climate control
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models. Rear cupholders are not included with (AE7) front 40/20/40 split-bench seat.)
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview manual day/night
• Headliner, Opal Gray-colored cloth with matching retainer moldings
• Visors, driver and front passenger, sliding with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, delete
• Tire Pressure Monitor System (does not apply to spare tire)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SNOW PLOW PREP PACKAGE

• includes 10-amp power for backup and roof emergency light
• forward lamp wiring harness
• (TRW) Provision for cab roof mounted lamp/beacon
• instrument panel jumper wiring harness for electric trailer brake controller
• (NZZ) Skid Plate Package and increased Front Gross Axle Weight Rating

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp. 30-amp nominal rating

SKID PLATE PACKAGE, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

DOOR LOCKS, POWER

• includes Remote Keyless Entry

REMOTE KEYLESS ENTRY

• with 2 transmitters and panic button.

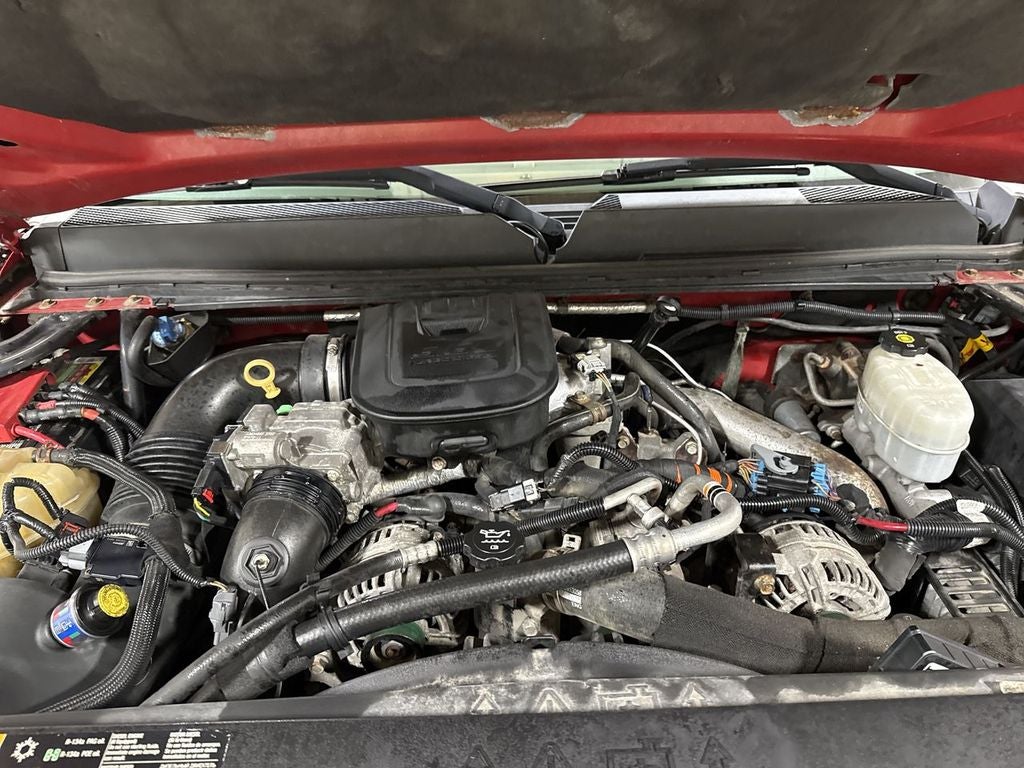

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm)

BATTERY, HEAVY-DUTY DUAL 730 COLD-CRANKING AMPS, MAINTENANCE-FREE

• with rundown protection and retained accessory power

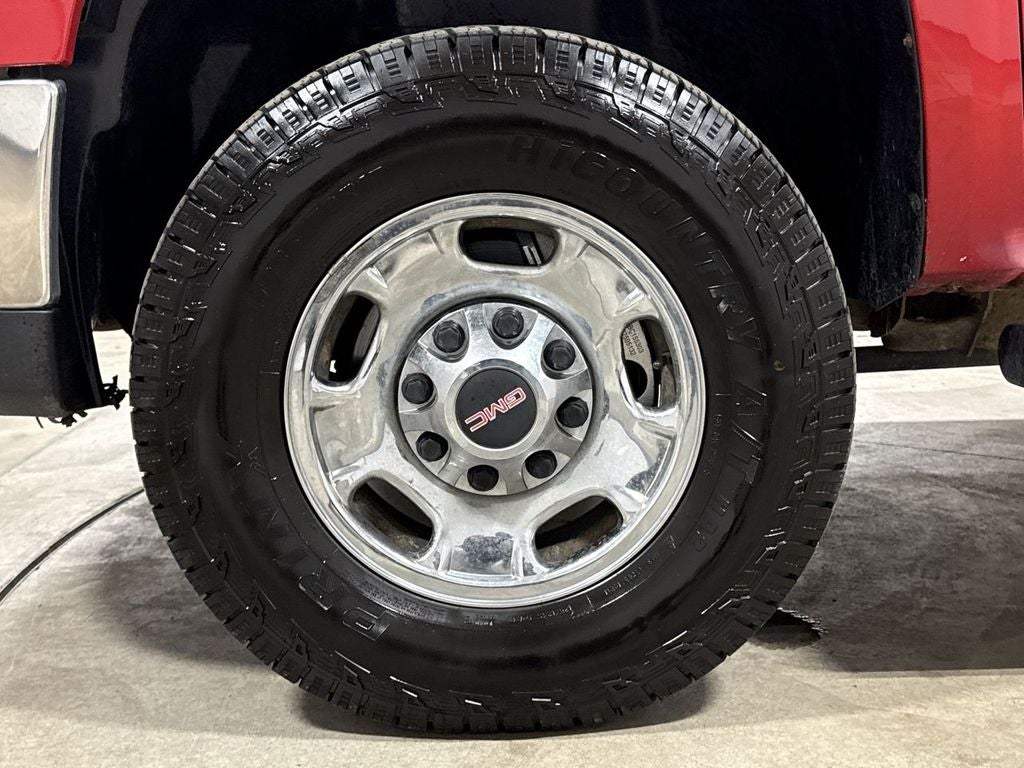

WHEELS, 17" (43.2 CM) CHROME-CLAD STEEL

• includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered

WINDOWS, LOCKS AND MIRRORS, POWER, DELETES REMOTE KEYLESS ENTRY

• Provides power driver and passenger front side windows with uplevel door panels on a base trim level vehicle. Includes RPO (DL8) outside heated power-adjustable manual folding mirrors
• RPO (AU3) power door locks and RPO (UQ3) speaker system. T/K***43- 53 models include rear door power windows and locks. Power mirrors can be upgraded to SEO (6P3) camper
• power-adjustable glass
• manual extendable
• heated mirrors. (Remote Keyless Entry becomes optional on all models and SEO (AU0) Remote Keyless Entry must be ordered and priced if desired.)

MIRRORS, CAMPER, POWER-ADJUSTABLE GLASS, MANUAL EXTENDABLE, HEATED

• Alternative mirrors replacing mirrors that are standard with SEO (5B5) power windows
• locks and mirrors on a base decor truck. Provides RPO (DPN) outside heated power-adjustable manual folding
• manual extendable vertical camper mirrors consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface within a common head. Includes turn signals in mirror glass

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

• with outboard head restraints and center fold-down armrest with storage (STD)

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• electronic engine grade braking and tow/haul mode

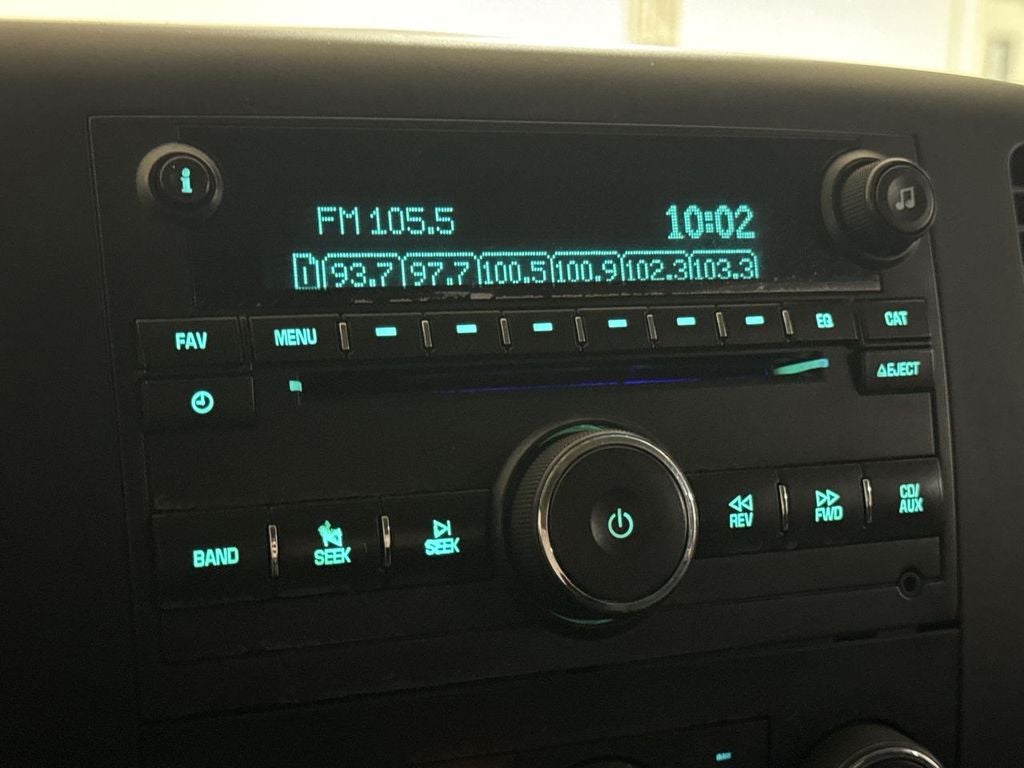

AUDIO SYSTEM, AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and TheftLock

COVER, 1-PIECE, COVERS RADIATOR GRILLE AND FRONT BUMPER OPENINGS

• for diesel engines in winter weather

• 1-Piece Radiator Grille and Front Bumper Openings Cover
• 10,000 lbs (4,536 Kg) GVWR
• 3.73 Rear Axle Ratio
• Allison 1000 6-Speed Automatic Transmission with Overdrive
• AM/FM Stereo with MP3 Compatible CD Player
• CT/ME/MD/MA/NJ/NY/OR/PA/RI/VT/WA Emission Requirements
• Dark Titanium
• Driver-Side Manual Lumbar Control Seat Adjuster
• Electric Rear-Window Defogger
• Fire Red
• Front 40/20/40 Split-Bench Seat
• Front License Plate Mounting Package
• Heavy-Duty Handling/trailering Suspension Package
• SEO: Manual Extendable Heated Camper Mirrors
• SEO: Power Windows
• Smoked Amber Roof Marker Lamps
• 17' Chrome-Clad Steel Wheels
• Duramax 6.6L Turbo Diesel V8 Engine
• Heavy-Duty Trailering Equipment
• LT265/70R17E AT BW Tires
• Power Door Locks
• Snow Plow Prep Package
• Work Truck Package
• 1-Pc Radiator Grille & Front Bumper Openings Cover
• 12V power outlets 2 12V power outlets
• 17' Chrome-Clad Steel Wheels
• 17' Steel Wheels
• 3-point seatbelt Rear seat center 3-point seatbelt
• 4-Wheel Disc Brakes
• 4WD type Part-time 4WD
• 6 Speaker Audio System Feature
• 6 Speakers
• 730 CCA Heavy-Duty Dual Battery
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Accessory power Retained accessory power
• Air Conditioning
• Air conditioning Yes
• Alternator Type Dual alternator
• AM/FM radio
• AM/FM Stereo w/Seek & Scan/Digital Clock
• Antenna Fixed audio antenna
• Armrests front center Front seat center armrest
• Armrests front storage Front seat armrest storage
• Ashtray
• Audio theft deterrent TheftLock audio system theft deterrent
• Auto door locks Auto-locking doors
• Auto headlights Auto on/off headlight control
• Aux input jack Auxiliary input jack
• Auxiliary power take-off
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery run down protection
• Battery type Dual lead acid batteries
• Beverage holders Front beverage holders
• Block heater Engine block heater
• Body panels Fully galvanized steel body panels with side impact beams
• Box style Standard style pickup box
• Brake assist
• Brake assist system
• Brake type 4-wheel disc brakes
• Bumper insert Black front bumper insert
• Bumper rub strip front Body-colored front bumper rub strip
• Bumper rub strip rear Black rear bumper rub strip
• Bumpers front Chrome front bumper
• Bumpers rear Chrome rear bumper
• Bumpers: chrome
• Cab mounted cargo light
• Cabback insulator
• CD location CD player located in the dashboard/instrument panel
• CD Single-disc CD player
• CD-R compatible
• Clearance lights Cab clearance lights
• Climate control Manual climate control
• Clock Digital clock
• Compressor Intercooled turbo
• Corrosion perforation warranty 72 month/100,000 miles
• Cruise control Cruise control with steering wheel mounted controls
• Cylinder head material Aluminum cylinder head
• Day/Night rearview mirror
• Delay off headlights Delay-off headlights
• Delay-off headlights
• Door ajar warning
• Door bins front Driver and passenger door bins
• Door handle material Black door handles
• Door mirror style Black door mirrors
• Door mirrors Power door mirrors
• Drive type Four-wheel drive
• Driver door bin
• Driver information center
• Driver lumbar Manual driver seat lumbar
• Driver seat direction Driver seat with 4-way directional controls
• Dual 125 Amps Alternators
• Dual front impact airbags
• Electronic Stability Control
• Electronic stability control Electronic stability control system with anti-roll
• Engine Block Heater
• Engine block material Iron engine block
• Engine Configuration Duramax V8
• Engine cooler Engine oil cooler
• Engine Duramax 6.6L V-8 diesel direct injection, intercooled turbo, diesel, engine with 397HP
• Engine hour meter
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine retarder Engine retarder system
• Engine Short Duramax 6.6L V-8
• Engine temperature warning
• Engine/electric motor temperature gauge
• Equalizer Automatic audio equalizer
• Exhaust Brake
• First-row windows Power first-row windows
• Floor coverage Full floor coverage
• Floor covering Full vinyl floor covering
• Folding door mirrors Manual folding door mirrors
• Folding rear seats Full folding rear seats
• Front anti-roll bar
• Front anti-roll Front anti-roll bar
• Front Center Armrest w/Storage
• Front head restraint control Manual front seat head restraint control
• Front head restraints Height adjustable front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Cancellable front passenger air bag
• Front reading lights
• Front seat type Split-bench front seat
• Front seat upholstery Vinyl front seat upholstery
• Front seatback upholstery Plastic front seatback upholstery
• Front wheel independent suspension
• Fuel Type Diesel
• Fully automatic headlights
• Gearshifter material Urethane gear shifter material
• Glove box Locking glove box
• Grille style Black grille with chrome surround
• Headlight type Reflector headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Full headliner coverage
• Headliner material Cloth headliner material
• Heated door mirrors Heated driver and passenger side door mirrors
• Heavy-Duty Rear Automatic Locking Differential
• Heavy-Duty Trailering Equipment (Retail)
• Height adjustable seatbelts Front height adjustable seatbelts
• High mount stop light High mounted center stop light
• Hill start assist
• Ignition Compression ignition system
• Ignition type Mechanical
• Illuminated entry
• Immobilizer

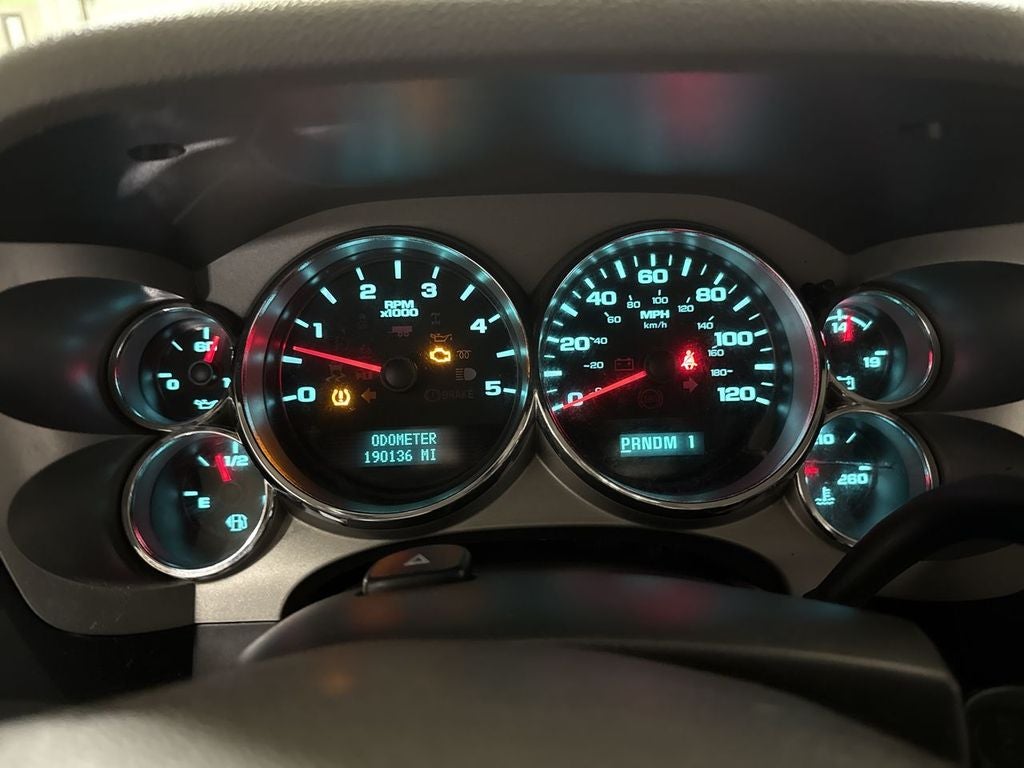

• Instrumentation display Analog instrumentation display
• Integrated Trailer Brake Controller
• Interior courtesy lights Fade interior courtesy lights
• Key in vehicle warning
• Keyfob keyless entry
• License plate front bracket Front license plate bracket
• Lock-up transmission
• Locking hub control Auto locking hub control
• Low level warnings Low level warning for coolant, fuel, washer fluid and brake fluid
• Low tire pressure warning
• Low tire pressure warning Tire specific low air pressure warning
• Manual driver seat controls Driver seat manual reclining, lumbar support and fore/aft control
• Manual passenger seat controls Passenger seat manual reclining and fore/aft control
• Multiple headlights Multiple enclosed headlights
• Number of airbags 2 airbags
• Number of doors 4 doors
• Oil pressure gauge
• Oil pressure warning
• One-touch down window Driver and passenger one-touch down windows
• Overdrive transmission
• Overhead console
• Overhead console Mini overhead console
• Paint Non-metallic paint
• Passenger cancellable airbag
• Passenger door bin
• Passenger doors rear left Reverse opening left rear passenger door
• Passenger doors rear right Reverse opening right rear passenger door
• Passenger seat direction Front passenger seat with 4-way directional controls
• Passenger vanity mirror
• Perimeter approach lighting Remote activated perimeter approach lighting
• Power steering
• Powertrain type ICE
• Powertrain warranty 60 month/100,000 miles
• Provision for Cab Roof-Mounted Lamp/Beacon
• Provisions Snow plow provisions
• PTO transmission provision
• Radiator
• Radio AM/FM
• RDS Radio data system (RDS)
• Rear bumper step
• Rear cargo door Tailgate
• Rear head restraint control 2 rear seat head restraints
• Rear head restraint control Manual rear seat head restraint control
• Rear head restraints Height adjustable rear seat head restraints
• Rear locking differential Automatic rear locking differential
• Rear reading lights
• Rear seat direction Front facing rear seat
• Rear seat folding position Fold-up rear seat cushion
• Rear seat upholstery Vinyl rear seat upholstery
• Rear seatback upholstery Carpet rear seatback upholstery
• Rear seats fixed or removable Fixed rear seats
• Rear seats Rear bench seat
• Rear Springs Regular grade rear springs
• Rear step bumper
• Rear under seat ducts Rear under seat climate control ducts
• Rear window defroster
• Rear windshield Fixed rear windshield
• Remote Keyless Entry
• Remote panic alarm
• Roadside warranty 60 month/100,000 miles
• Running lights Daytime running lights
• Seatback storage pockets 2 seatback storage pockets
• Seatbelt pretensioners Front seatbelt pretensioners
• Seatbelt pretensioners number 2 seatbelt pre-tensioners
• Seating capacity 6
• Second-row windows Power second-row windows
• Seek scan
• Selectable mode transmission
• Service interval warning Service interval indicator
• Shock absorbers Gas-pressurized shock absorbers
• Skid plate 2 underbody skid plates
• Skid Plate Package
• Spare tire Full-size spare tire with steel wheel
• Spare tire location Crank-down spare tire
• Speakers number 6 speakers
• Speakers Standard grade speakers
• Special paint Monotone paint
• Speed control
• Speed sensitive volume
• Split front seats 40-20-40 split-bench front seat
• Springs front Front torsion springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering type Re-circulating ball steering
• Steering wheel material Urethane steering wheel
• Steering wheel tilt Manual tilting steering wheel
• Suspension Heavy-duty ride suspension
• Suspension ride type front Independent front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension type front Short and long arm front suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailpipe Stainless steel single exhaust
• Tilt steering wheel
• Tinted windows Light tinted windows
• Tires LT265/70QR17 AT BSW front and rear tires
• Tow hooks front 2 front tow hooks
• Towing brake controller Trailer brake controller
• Towing class Class IV tow rating
• Towing hitch Trailer hitch
• Towing trailer sway Trailer sway control
• Towing wiring harness Trailer wiring harness
• Traction control
• Traction control All-speed ABS and driveline traction control
• Transfer case Manual transfer case shift
• Transmission Allison 6-speed automatic
• Transmission electronic control
• Transmission fluid temperature warning Transmission fluid temp warning
• Transmission oil cooler
• Transmission Type Automatic
• Trip odometer
• Turn signal warning Turn signal on warning
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Ventilated brakes Front and rear ventilated disc brakes
• Vinyl Seat Trim
• Visor passenger mirror Passenger visor mirror
• Voltmeter
• Wheel covers Chrome-clad wheel covers
• Wheels 17 x 7.5-inch front and rear steel wheels
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 2 @ 125
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): 25.4
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3638
• Curb Weight - Rear (lbs): 2665
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 24500
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1425
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16400
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2375
• Maximum Trailering Capacity (lbs): 16400
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 6000
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QXT
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QXT
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZXT
• Front Tire Size: LT265/70R17E
• Front Tire Size: LT245/75R17
• Rear Tire Size: LT265/70R17E
• Rear Tire Size: LT245/75R17
• Spare Tire Size: LT265/70R17E
• Front Tire Capacity (lbs): 3005
• Front Tire Capacity (lbs): - TBD -
• Front Tire Capacity (lbs): 2760
• Front Tire Capacity (lbs): 2580
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): 3185
• Rear Tire Capacity (lbs): 3100
• Rear Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): 3100
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 3.57
• Steering Ratio (:1), At Lock: 3.57
• Turning Diameter - Curb to Curb (ft): 47.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 144.20
• Length, Overall w/o rear bumper (in): 230.60
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 77.90
• Overhang, Front (in): 38.80
• Overhang, Rear w/o bumper (in): 52.60
• Front Bumper to Back of Cab (in): 141.40
• Cab to Axle (in): 41.60
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 38.20
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.80
• Ground Clearance, Rear (in): 8.50
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.80
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.50
• Cargo Box Width @ Wheelhousings (in): 50.60
• Cargo Box (Area) Height (in): 21.00
• Tailgate Width (in): 61.60
• Cargo Volume (ft³): 60.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.10
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 60.30
• Second Head Room (in): 39.50
• Second Leg Room (in): 34.40
• Second Shoulder Room (in): 65.30
• Second Hip Room (in): 61.80
• Summary
• Vehicle Name: GMC Sierra 2500HD
• Body Style: Extended Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
